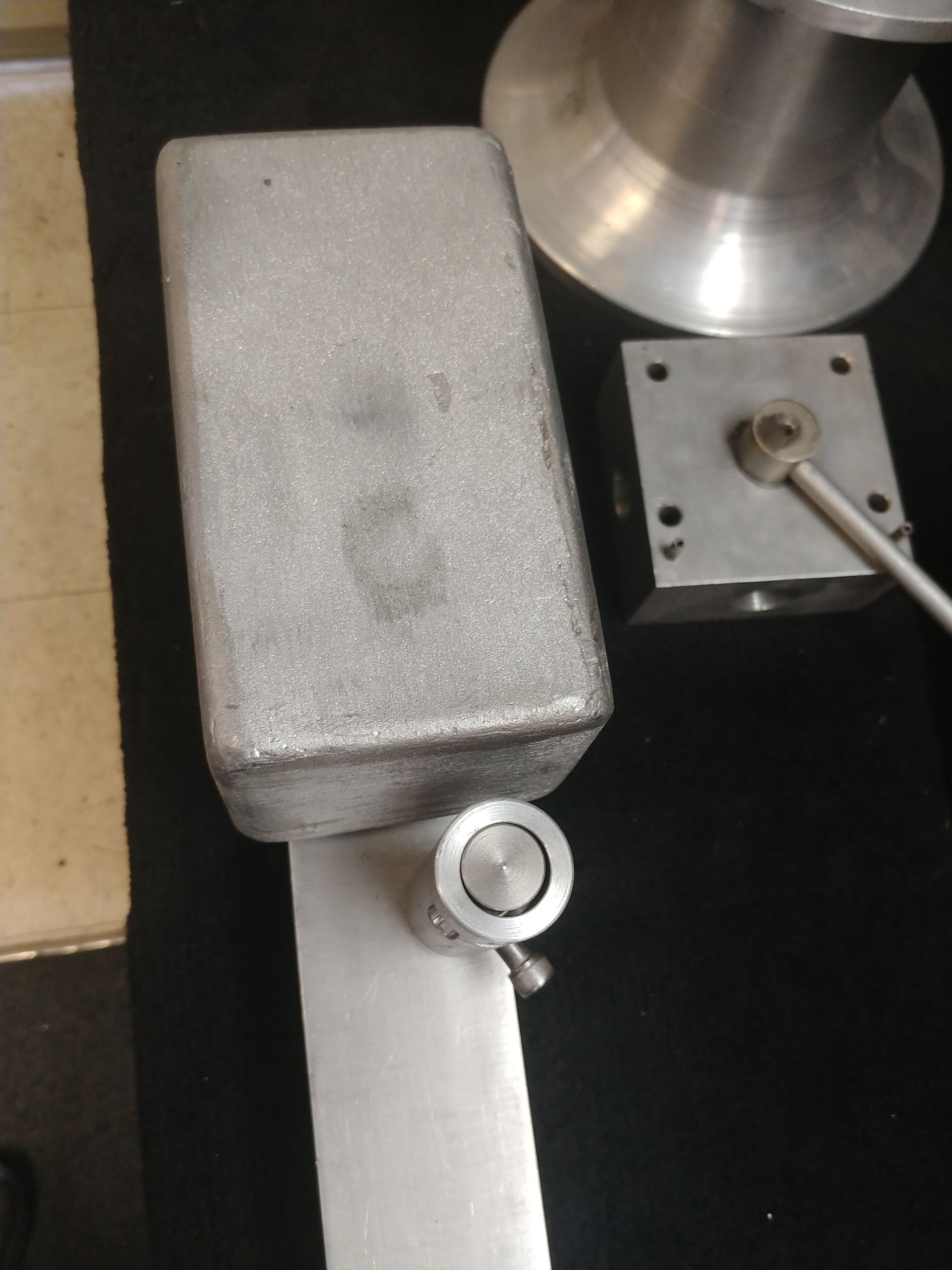

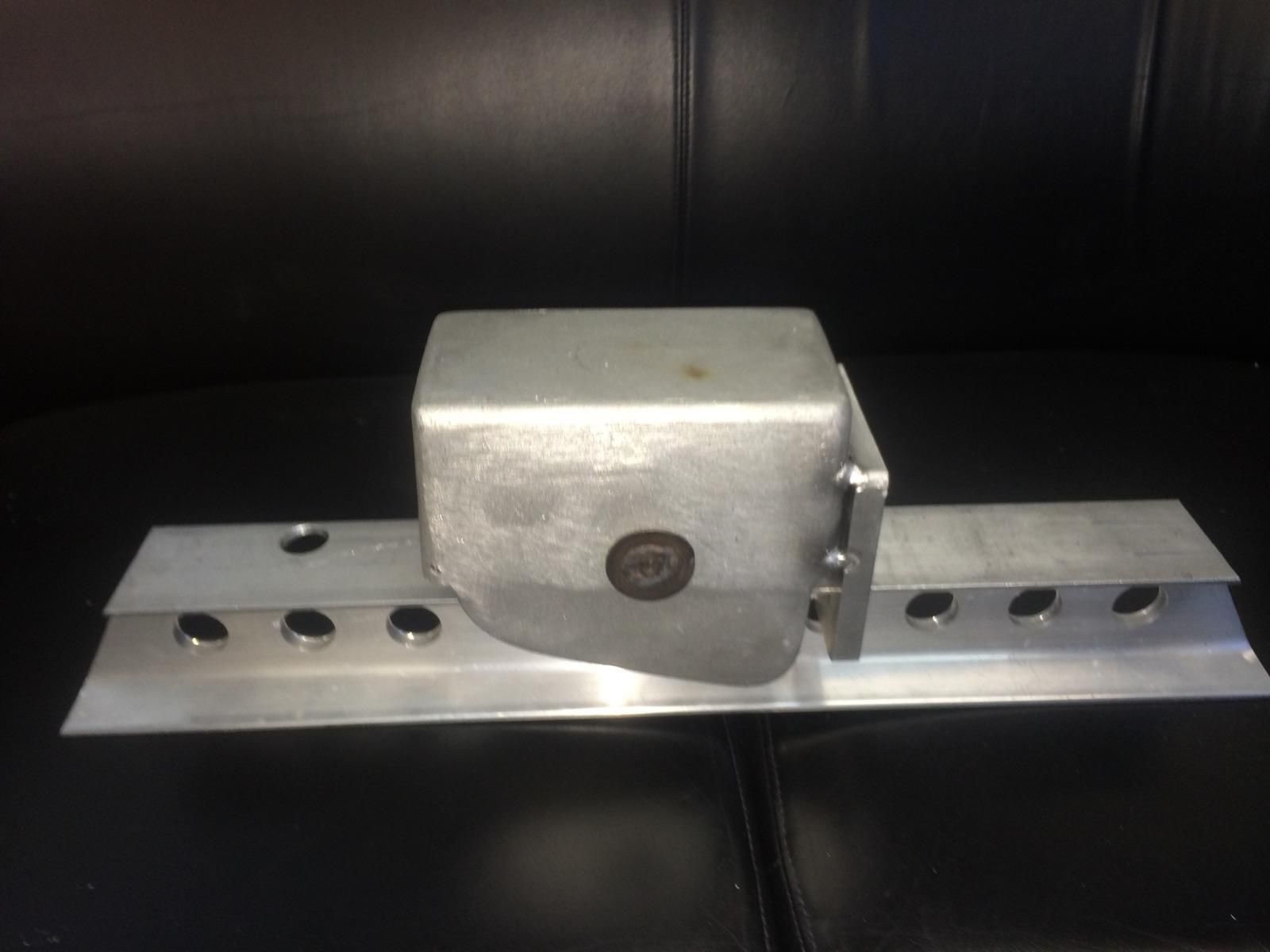

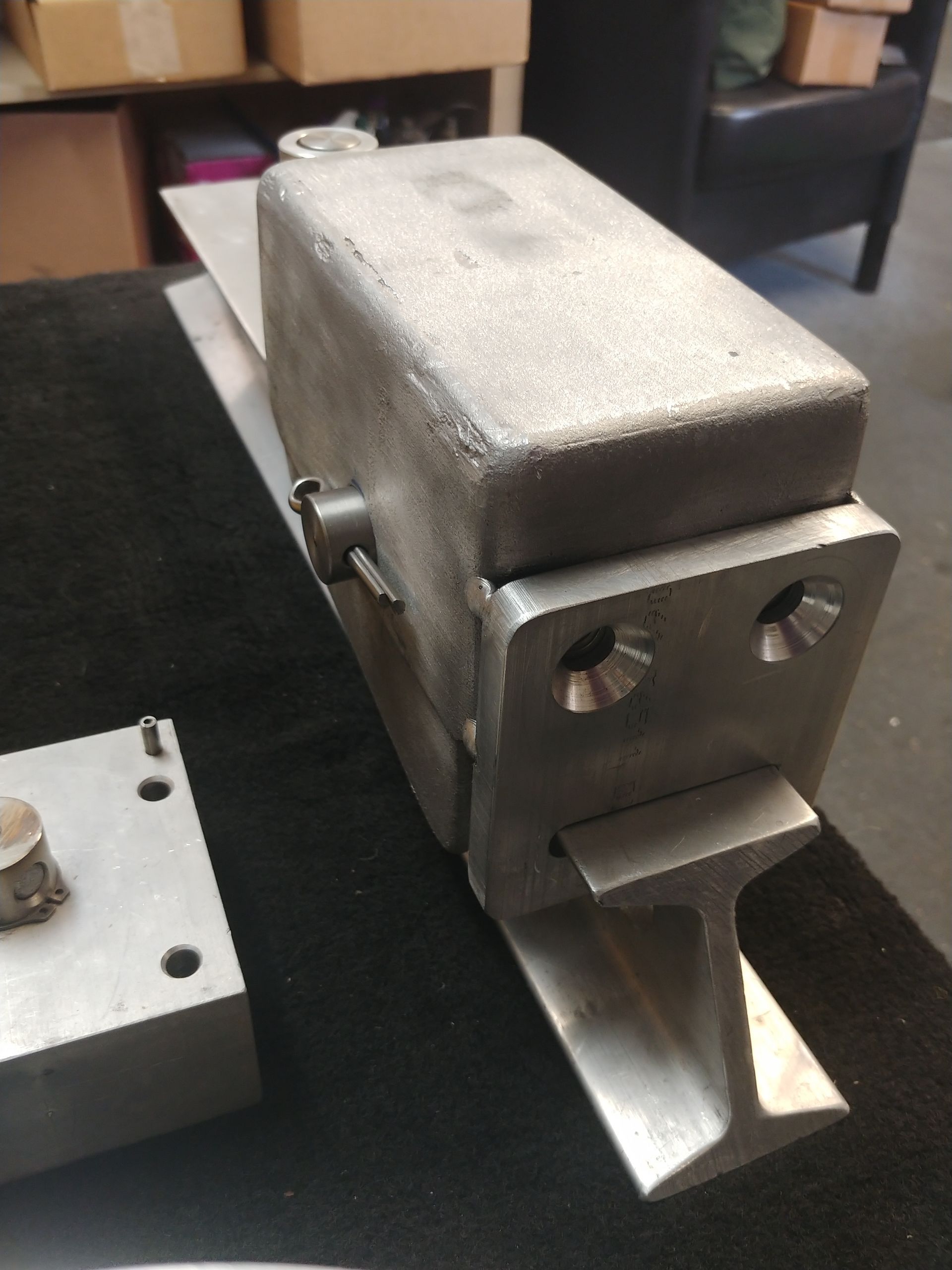

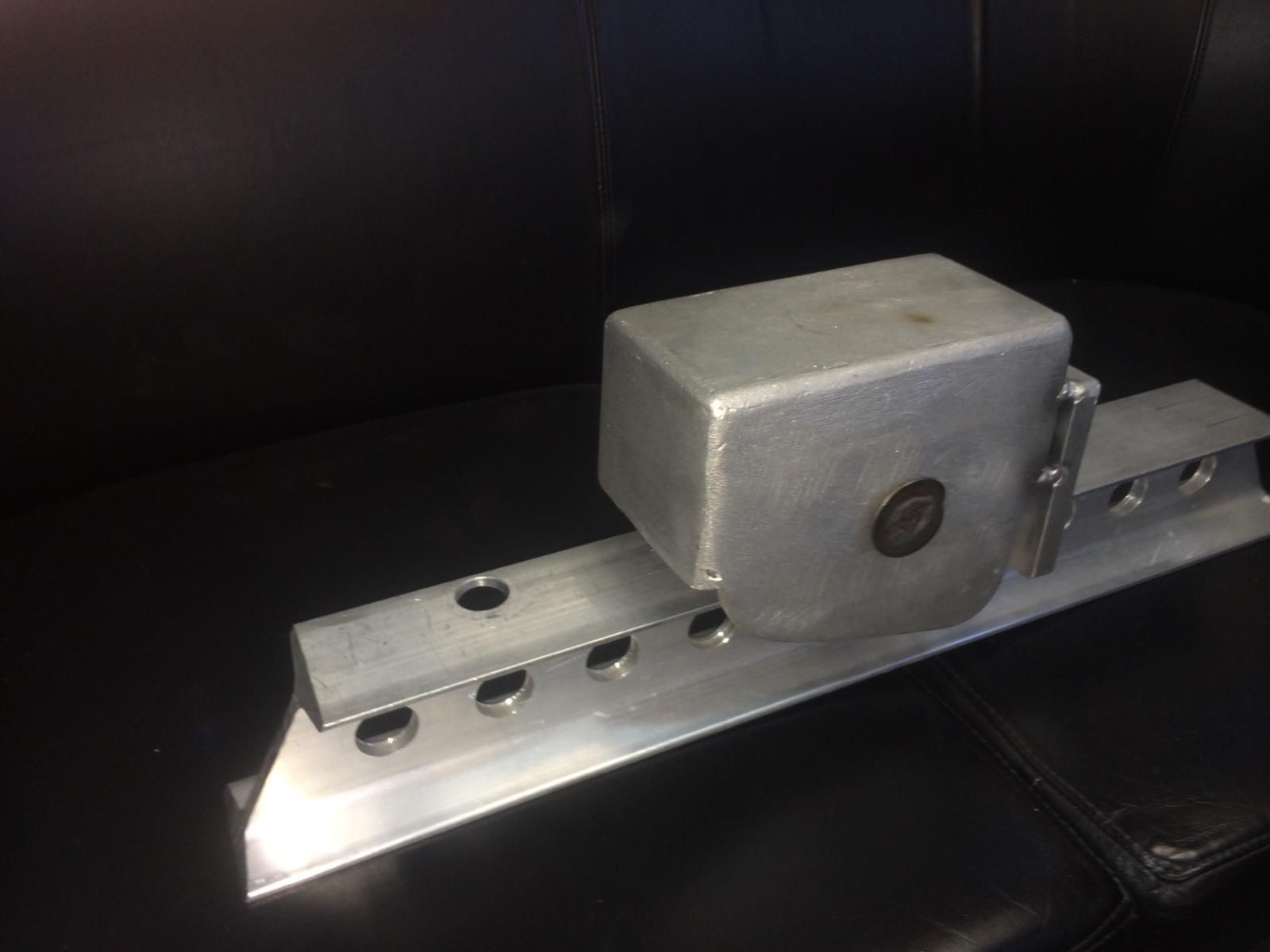

Gill Net Drum
FEATURES:
- Twister Wheel Drive
- Twister Planetary Drive
- Direct Drive Hydraulic Motor
LEVELWIND:
- Manual or Automatic
- Built Specifically For Your Net Drum
Click
HERE to visit the Levelwinds page.
FEATURES:
Choice of:
- Twister Planetary Drive with Support Bearing
- Twister Wheel Direct Drive Hydraulic Motor with Support Bearing
DIAMOND SCREW LEVELWIND:
- Chain and Sprocket or Direct Hydraulic Drive
- Manual or Automatic
- Specifically Built For Your Boat
TYPICAL SIZE RANGE:
- 36" diameter x 36" to 60" wide
- 48" diameter x 36" to 60" wide
- 60" diameter x 48" to 66" wide
- 66" diameter x 48" to 72" wide
Long Line Drum
Appx. Line Capacity Full Skates (Miles) Based on 15" Core
| Size | 3/16" dia. line skates (mi.) |
1/4" dia. line skates (mi.) |
5/16" dia. line skates (mi.) |
3/8" dia. line skates (mi.) |
| 36" dia. x 36" | 25 (8.5) | 14 (4.7) | 9 (3.1) | |
| 36" dia. x 48" | 33 (11.4) | 19 (6.5) | 12 (6.4) | |
| |
||||
| 36" dia. x 36" | 31 (10.6) | 17 (5.9) | 11 (3.8) | |
| 36" dia. x 48" | 41 (14.1) | 23 (7.9) | 15 (5.1) | |
| 48" dia. x 48" | 75 (25.5) | 42 (14.3) | 27 (9.2) | 23 (7.8) |
| 48" dia. x 60" | 94 (32.0) | 53 (18.1) | 34 (11.6) | 28 (9.8) |
| 60" dia. x 60" | 151 (51.5) | 85 (30.0) | 54 (18.4) | 47 (16.0) |
Notes: Do not use nylon line |
One skate (1800 feet) = 0.34 miles |
Drum capacities shown are leaving 3" to 4" of flange open
Drum Capacity Formula:
(A + B) x A x C x K = FT
"K" for: 3/16" dia. rope = 7.44 | 1/4" dia. rope = 4.16 | 5/16" dia. rope = 2.67 | 3/8" dia. rope = 1.86
"K" for: 3/16" dia. rope = 7.44 | 1/4" dia. rope = 4.16 | 5/16" dia. rope = 2.67 | 3/8" dia. rope = 1.86
"A", "B" & "C" expressed in inches. "A" is the distance between core and outside of flange. "B" is the diameter of core. "C" is the distance between flanges.

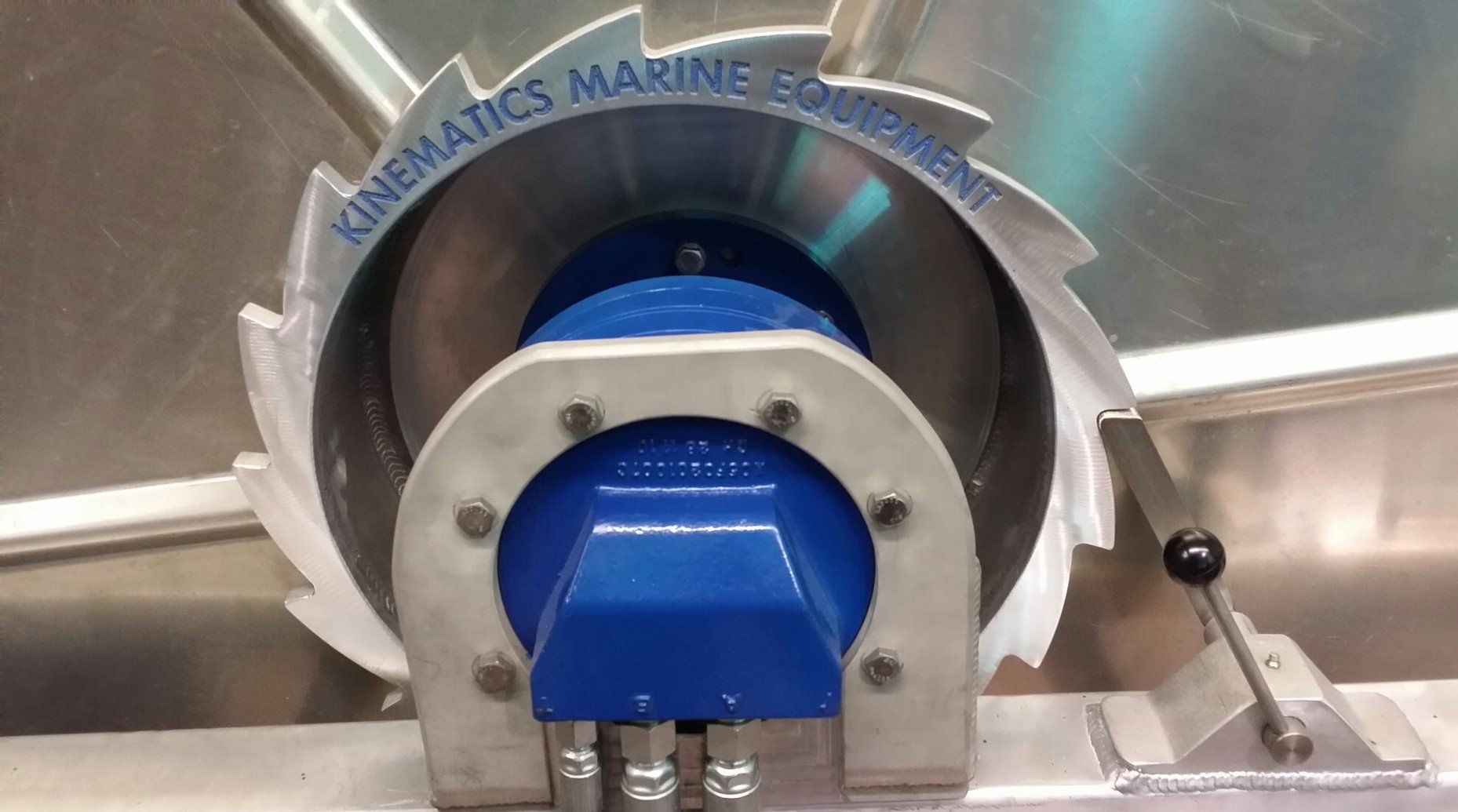

Marine Drum Dog and Ratchet
FEATURES:
- Standard 4 Hole or 6 Hole Pattern
- 8-1/2" Bolt Circle For Standard 4 Hole Pattern
- 8-1/4" Bolt Circle For Standard 6 Hole Pattern
- 21 Teeth
OPTIONS:
- Bolt-On - 16" core
- Weld-On - 19" core

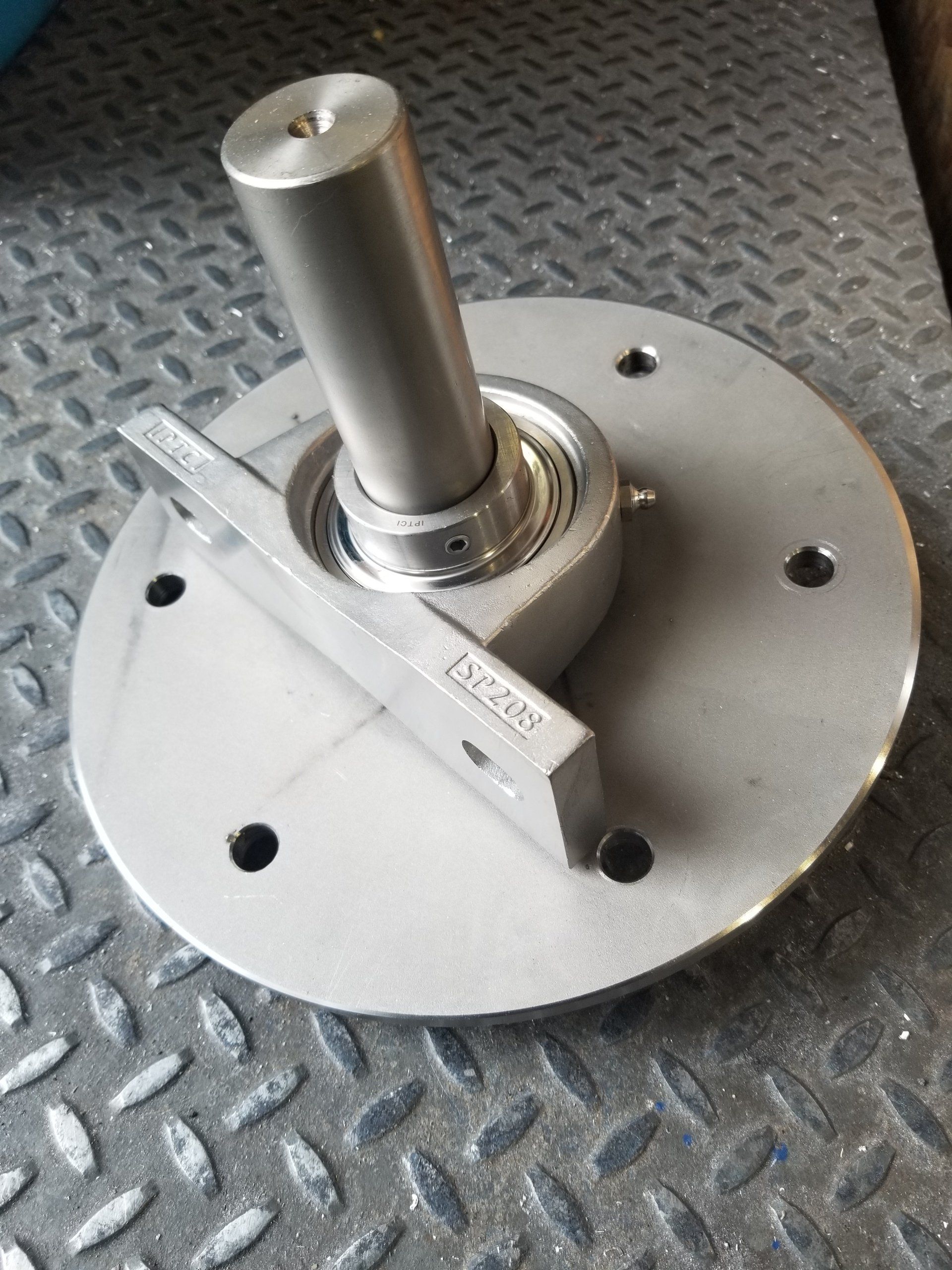

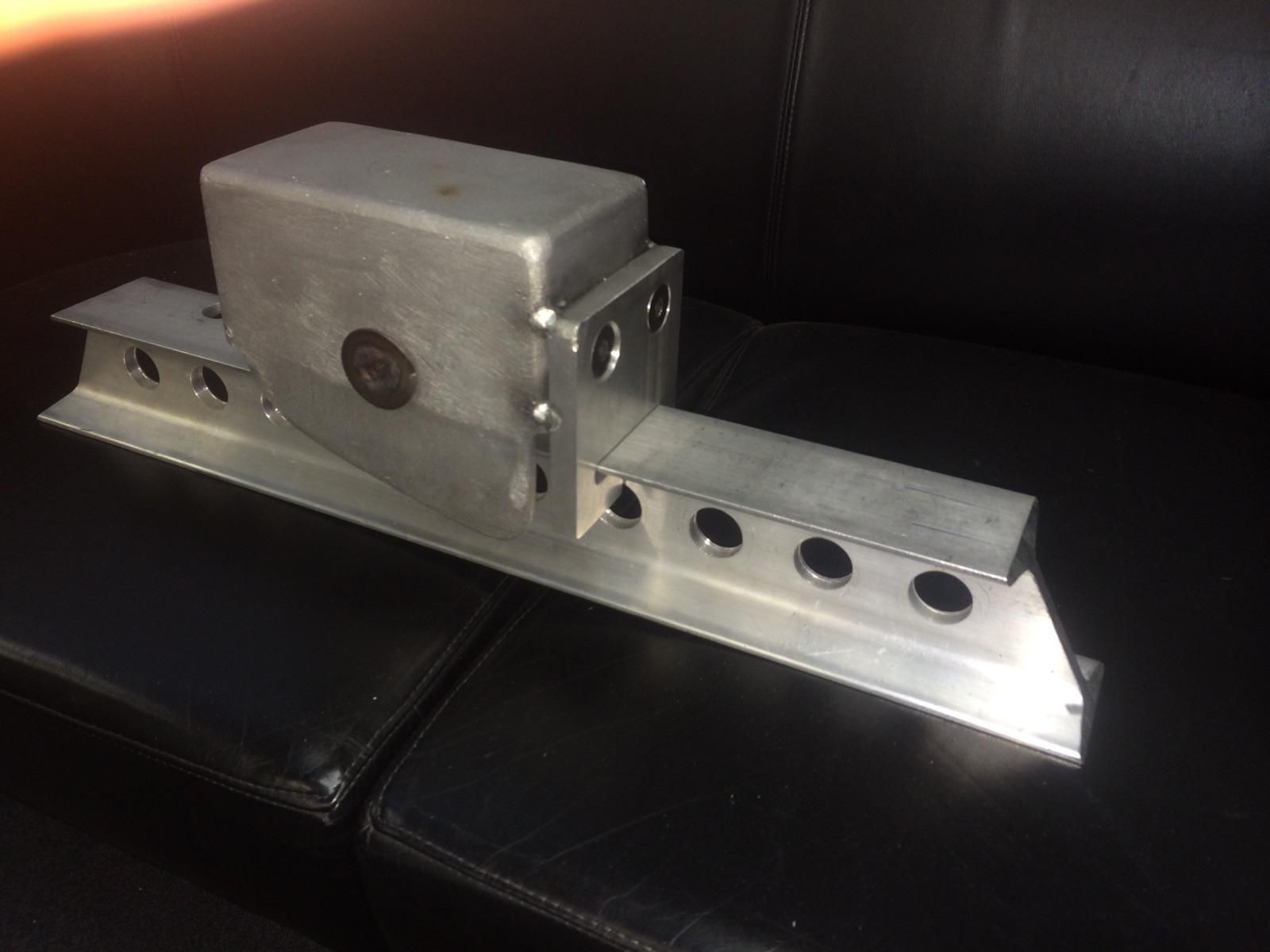

All Stainless Steel Idle Flange
FEATURES:
- Standard 4 Hole or 6 Hole Pattern
- 8-1/2" Bolt Circle For Standard 4 Hole Pattern
- 8-1/4" Bolt Circle For Standard 6 Hole Pattern
- 1-1/2" Shaft
OPTIONS:
- Custom Bolt Pattern
- 2" Shaft

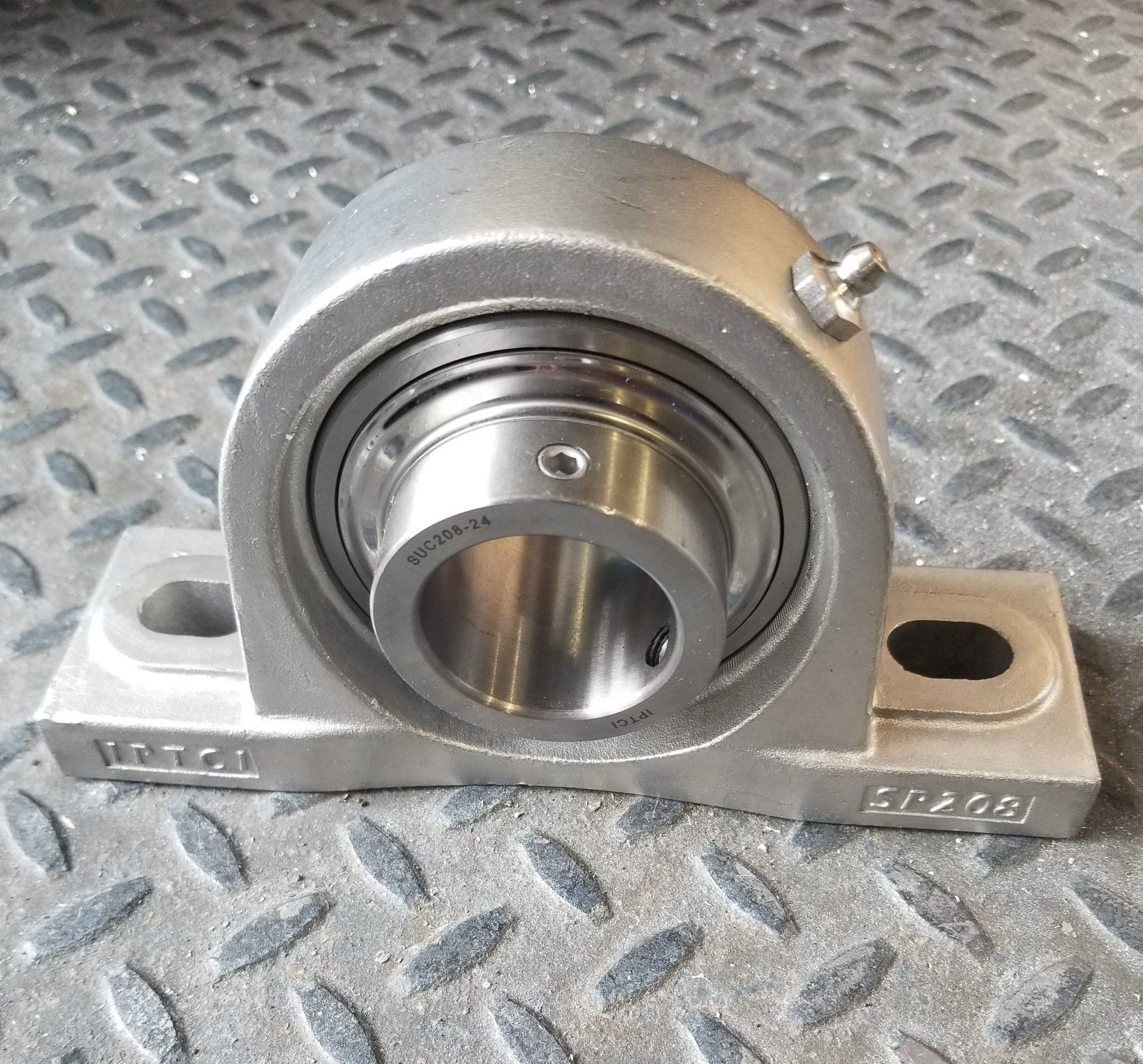

All Stainless Steel Pillow Block Bearing
FEATURES:
- High Quality Stainless Steel.
- Bearing Has A Wide Inner Ring With Two Set Screws For Attaching To The Shaft.
- Housing includes A Grease Zerk For Re-Lubing The Bearing.
- Many Sizes Available.

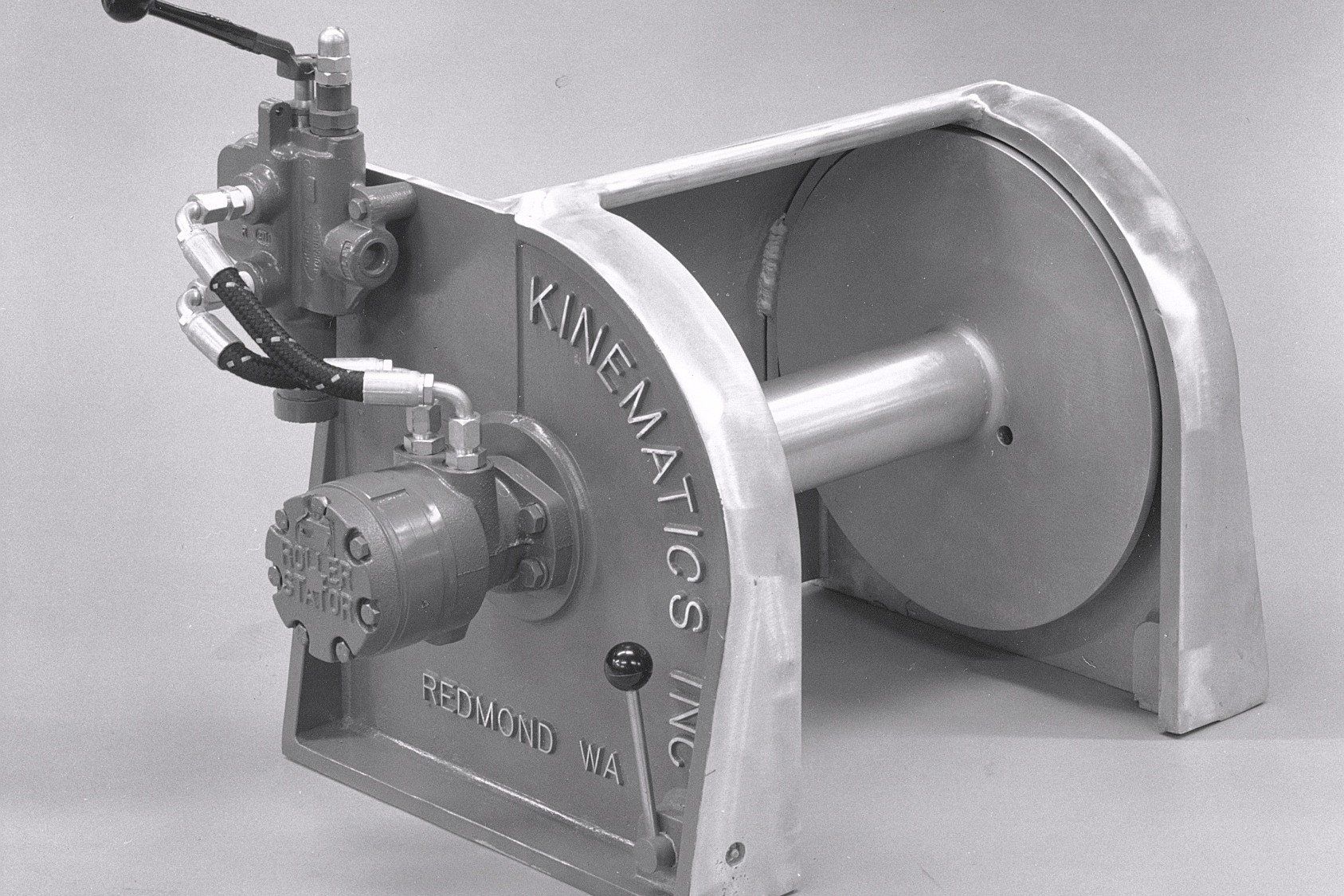

KAW-12 Series Aluminum Anchor Winch
FEATURES:
- Cast aluminum
- Direct drive
- Complete freewheeling
- Stainless steel dog
- Enclosed spool valve allows for power in, power out, free spool, and brake (rotary optional)
- 3.5" diameter core
- 12" diameter flange
- 18 CI White/Danfoss hydraulic motor
- See left side of page for options
- Control valve rated at 16 GPM and ?PSI
- All storage capacities are approximate
| KAW Winch No. | KAW 12 x 12 | KAW 12 x 14 | KAW 12 x 16 | |
| Width Between Flanges | 12" | 14" | 16" | |
| Approximate Line Pull Pull @ 1800 PSI |
650 lb @ full drum |
|||
| 3/8" Chain | 24 feet | 25 feet | 28 feet | |
| 3/8" Line | 325 feet | 380 feet | 434 feet | |
| 7/16" Line | 245 feet | 286 feet | 327 feet | |
| 1/2" Line | 190 feet | 222 feet | 254 feet | |
| 5/8" Line | 125 feet | 146 feet | 166 feet | |
UPGRADE OPTIONS:
- Stainless steel core
- Diamond screw levelwind
- Band wheel break
- 5-inch capstan with hydraulic motor
- Rotary control valve
- Hydraulic motor options
- Custom widths
- Custom finishes
