Levelwinds

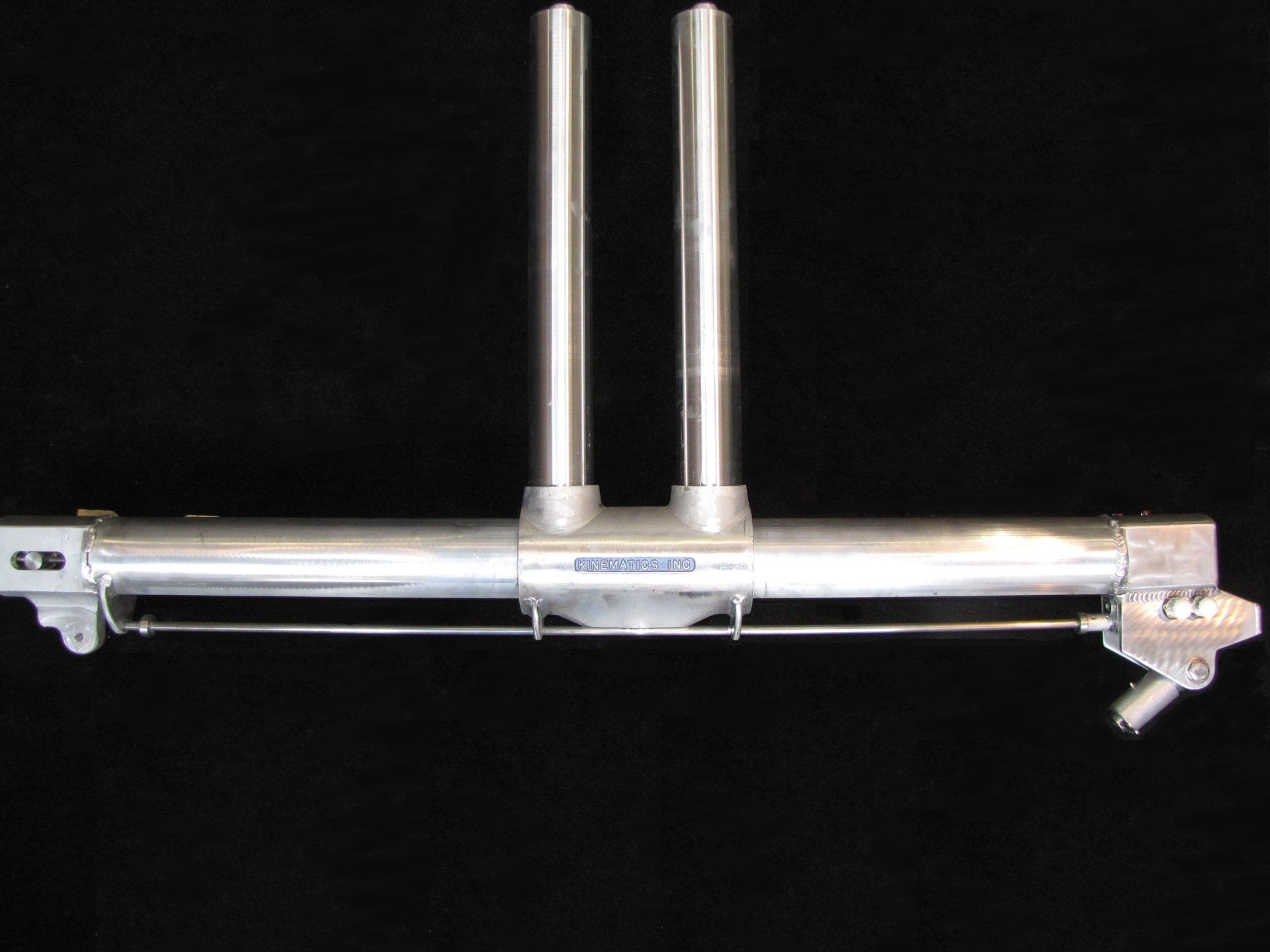

Automatic Gill Net Levelwind

FEATURES:
  • Automatically and smoothly manages net retrieval onto storage drum
  • Utilizes shuttle relief hydraulic reversing valve
RECOMMENDED OPTIONS:
  • FC-55 flow control
  • Cross-port pressure relief valve
Automatic Gill Net Levelwind

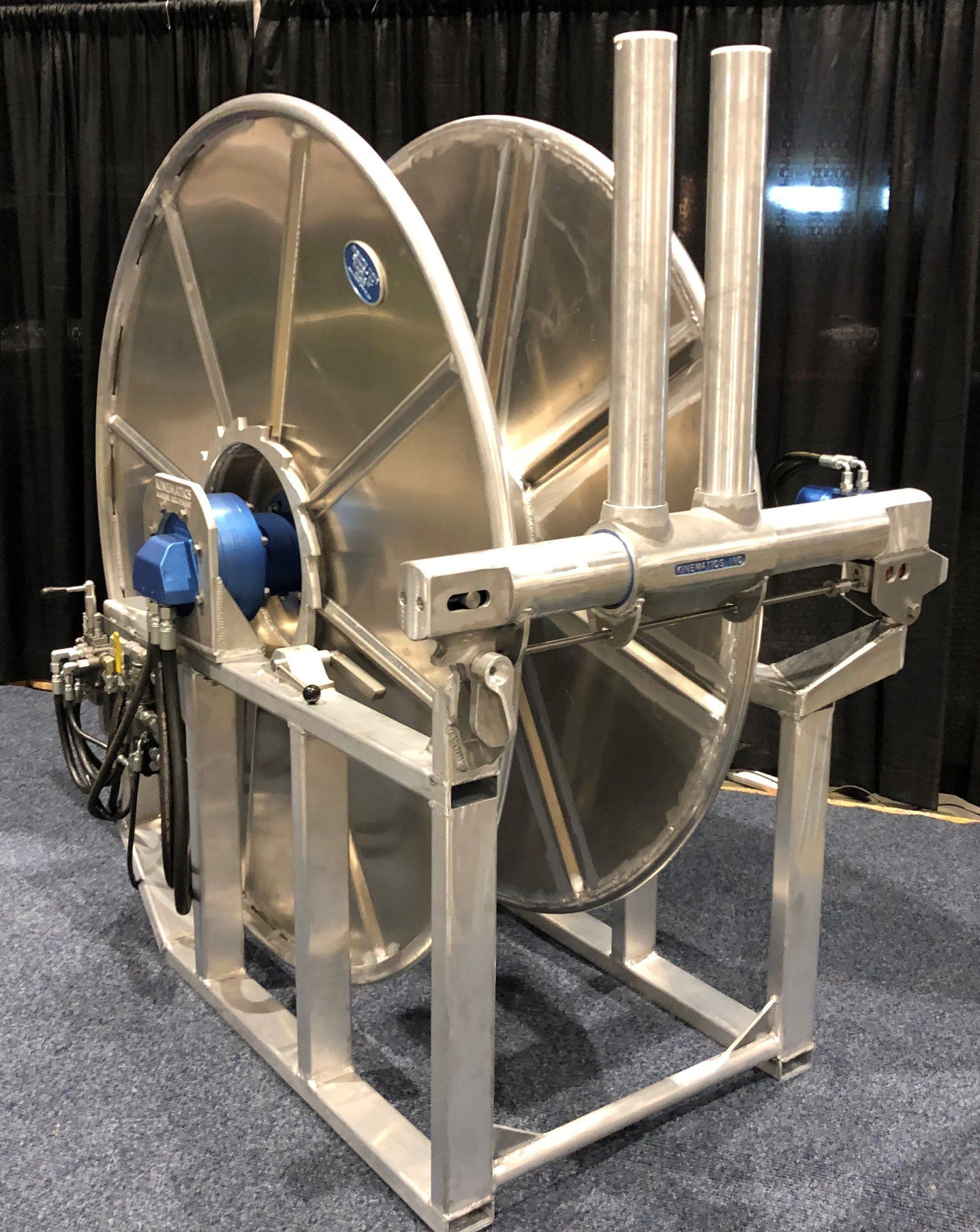

Standard Gill Net Levelwind

FEATURES:
  • Smoothly manages net retrieval onto storage drum
  • Manually controlled by customer supplied operating valve
RECOMMENDED OPTIONS:
  • Cross-port pressure relief valve
Standard Gill Net Levelwind

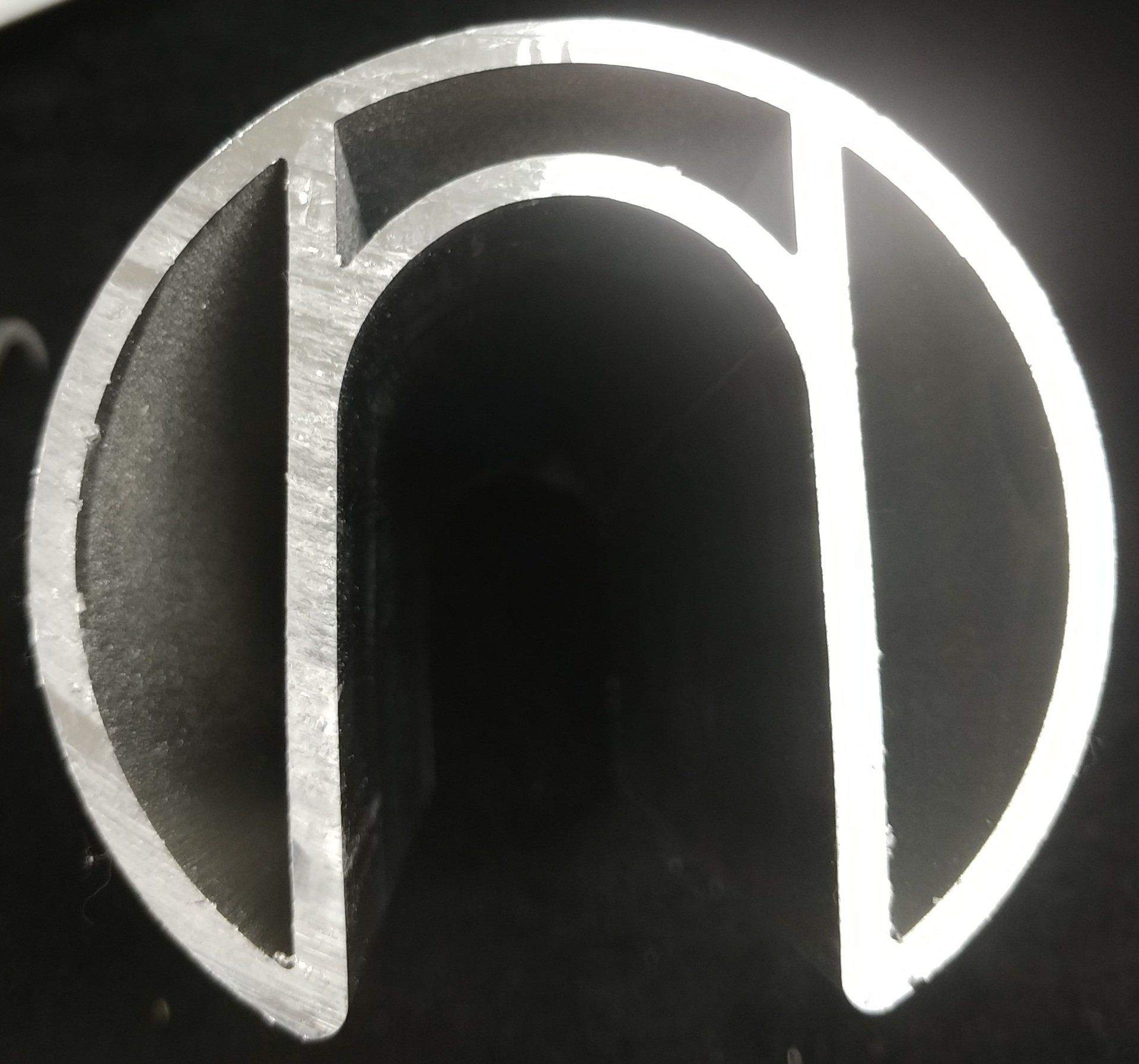

Levelwind Extrusion

FEATURES:
  • Proprietary extrusion maximizes strength
  • Round on outside for ease of setting
  • Square on inside to prevent fair lead rocking

Levelwind Extrusion

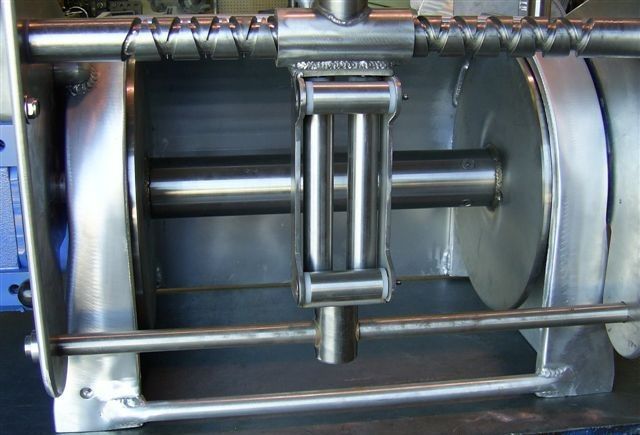

Long Line Levelwind

FEATURES:
  • Diamond screw threaded levelwind
  • Hardened stainless steel or bronze
AVAILABLE OPTIONS:
  • Chain and sprocket drive
  • Hydraulic motor drive
Long Line Levelwind

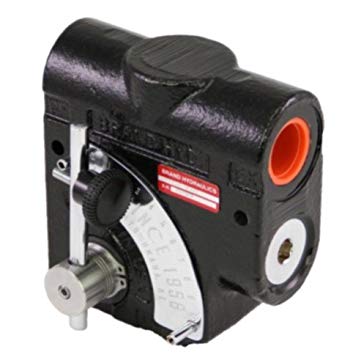

FC-55 Flow Control Valve

FEATURES:
  • Inline Variable Flow Control
  • Free Reverse Flow
  • 16 GPM Maximum Flow Capacity
  • Handle Included
  • 1/2" NPT Hydraulic Line Ports
Full range pressure compensating variable flow control is designed so that the orifice area varies as the lever is rotated. Fluid travels past the variable orifice, through the compensator spool and then out the controlled flow port. Therefore the flow out of the CF port is proportional to the orifice area which can vary from closed to open. The sum of the controlled flow and the excess flow equals the inlet flow and as the controlled flow increases the excess flow decreases. Both outlet flows are pressure compensated with a spool that maintains a constant flow by adjusting for pressure. Hunting between the compensated pump and our valve is dampened with a dashpot on the compensator spool. Thus, the outlet flow is smooth and constant regardless of the pressure on the CF and EX port. External seals on the rotary spool prevent contamination from getting between the spool and the casting, thus preventing the spool from locking in one position. All FC-55s are built with stainless steel rotary spools to help prevent the rotary spools from locking up when they are in a corrosive environment.
AVAILABLE OPTIONS:
  • Flame Spray Corrosion Resistant Paint
FC55 Valve

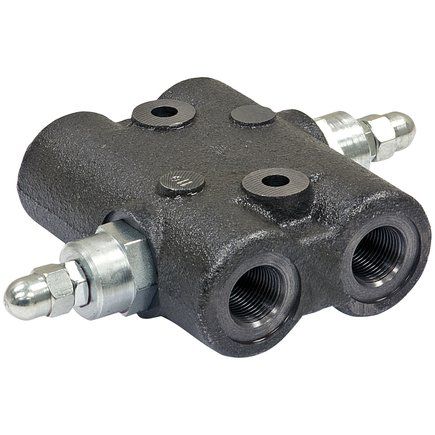

Cross Port Pressure Relief Valve

FEATURES:
  • Cross-Over Directional Relief Valve
  • 30 GPM Maximum Flow Capacity
  • Preset to 800 PSI, 500 to *3000 PSI with SAE Ports
  • 1/2" NPT* Hydraulic Line Ports
This poppet type double relief valve has been designed to protect equal displacement cylinders or motors from external or shock loads. Fluid, which passes through one relief valve, flows directly to the opposite side or circuit of the valve, thus preventing cavitation of the cylinder or motor as a result of relief discharge. The valve incorporates a hydraulically dampened poppet design that uses differential areas to provide minimum variation between opening and full flow pressures
AVAILABLE OPTIONS:
  • Flame Spray Corrosion Resistant Paint
Crossport Relief Valve
